Joe & the Juice
5 images
Surface Area
15 m²
Number of Modules
2
Completion Date
May 2024
Joe and the Juice - Modular Container Cafe by Hardbox
We present the project for Joe and the Juice – an innovative modular cafe, created by Hardbox. Two 20DV/DC shipping containers were transformed into a fully functional catering space, ideal for serving fresh juices and snacks.
Durability and Mobility

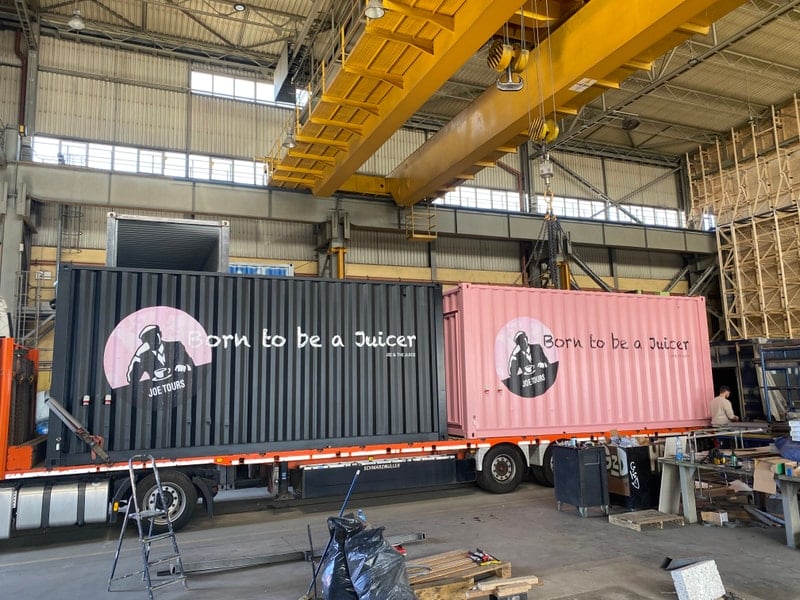

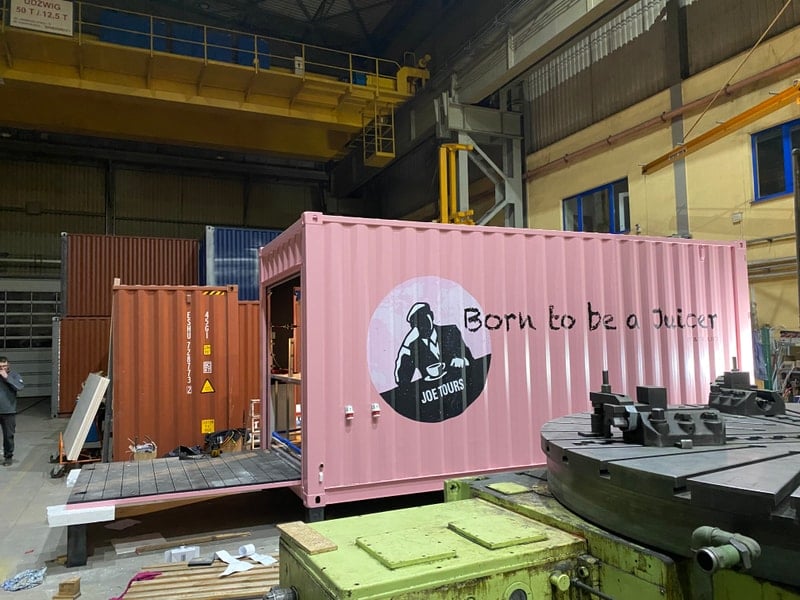

The structure, based on a robust container frame, ensures durability and ease of transport. The containers were painted in Joe and the Juice's characteristic brand colors (RAL), giving them a recognizable and modern appearance.
Finishing and Insulation

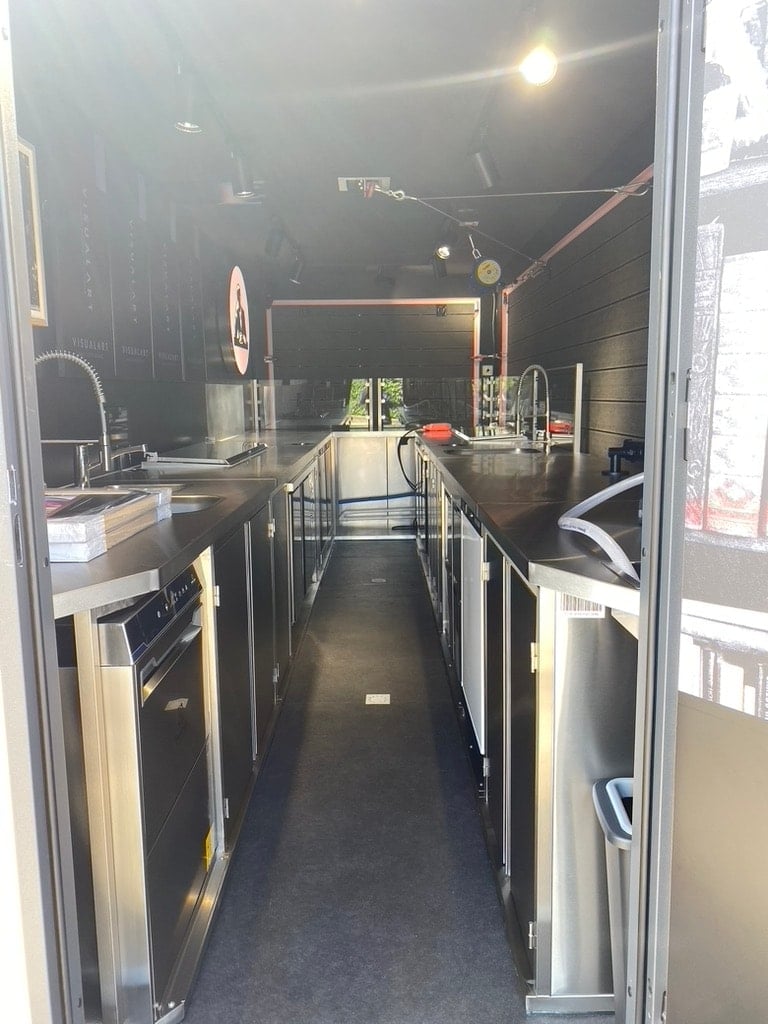

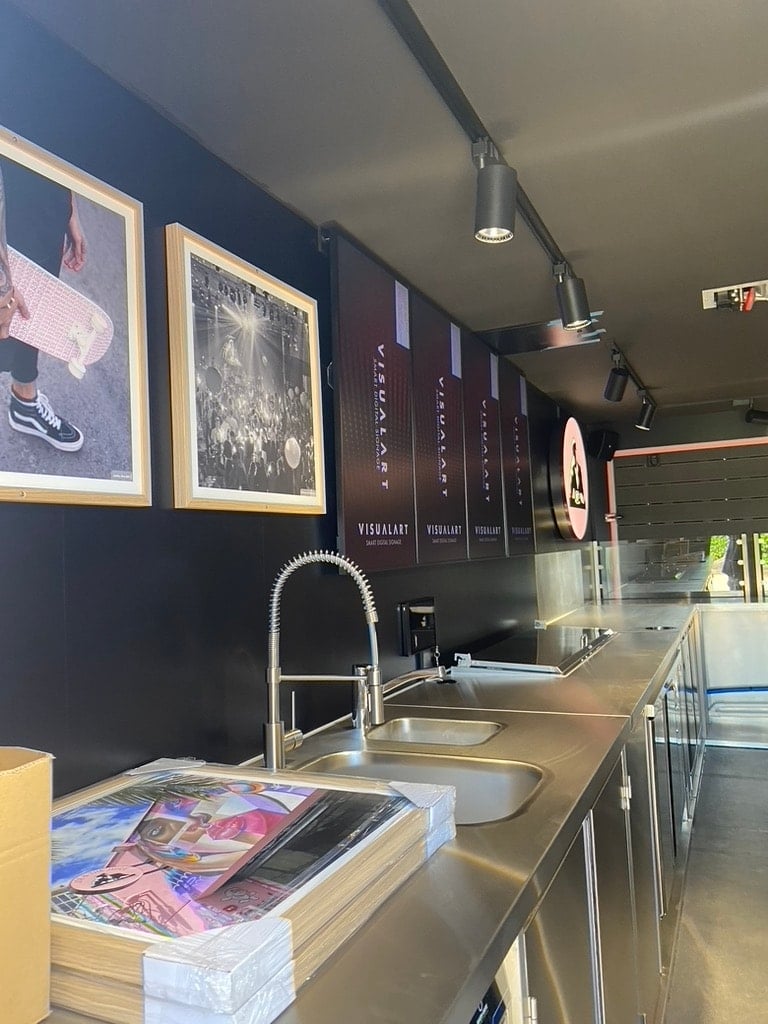

The interior of the containers was meticulously finished, with attention to every detail. PUR (Polyurethane) foam insulation was applied, guaranteeing thermal comfort regardless of weather conditions. Professional catering equipment ensures efficient operation and high quality of served products.
Rapid Implementation
Thanks to Hardbox's modular construction, the project was implemented quickly and efficiently, minimizing the time required to launch a new location for Joe and the Juice.
TECHNICAL SPECIFICATION 20 HC
•20 DV Shipping Container.
•Container in areas of structural modifications protected with reactive primer
and painted in RAL 7016
One-way container with no shipping history,
odorless and completely watertight.
•Structural Modifications
•Cut-out for technical door (900x2100mm)

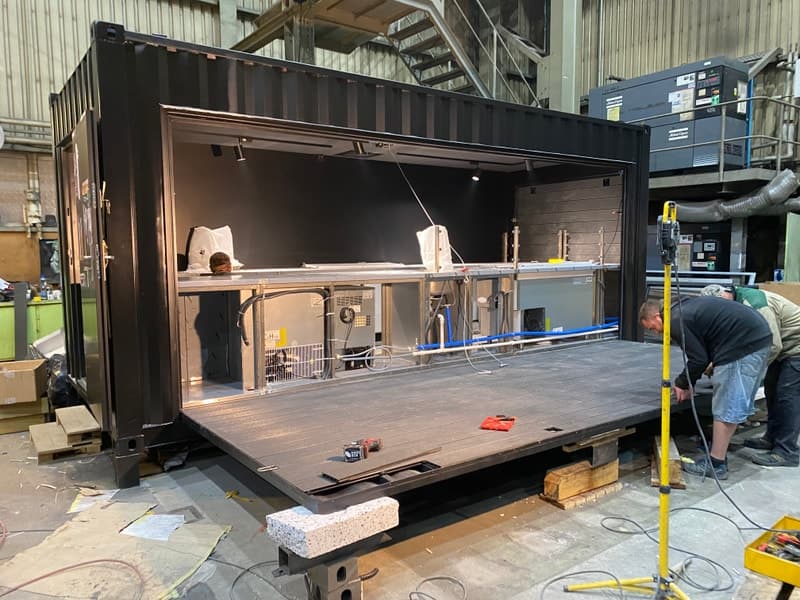

•1x Platform on electric winch (5000x2200mm)
•Wall
•PUR foam thermal insulation ≈ 30 mm
•12mm OSB board
•Concealed electrical installation
•White Vell board
•Ceiling
•PUR foam thermal insulation ≈ 30 mm
•Plasterboard (GK board), latex paint
•Internal electrical installation for lighting
•Flooring
•Forbo commercial homogeneous flooring 2mm, black or graphite
•Platform – Anthracite composite decking board
•Electrical System (concealed connection)
•External connection, three-phase 32A 400V (Power)
•1x16 surface-mounted modular distribution board
•Connection for up to 20 points 220V, hermetic sockets with grounding and shuttered
current paths
•Lighting circuit for each room
•2x 16A 400V Socket
•Plumbing
•3x External connection
•2x Floor drain
•Alupex connection
•Furniture Installation
•Installation of client-supplied furniture
•Additional Elements
•Electric winch

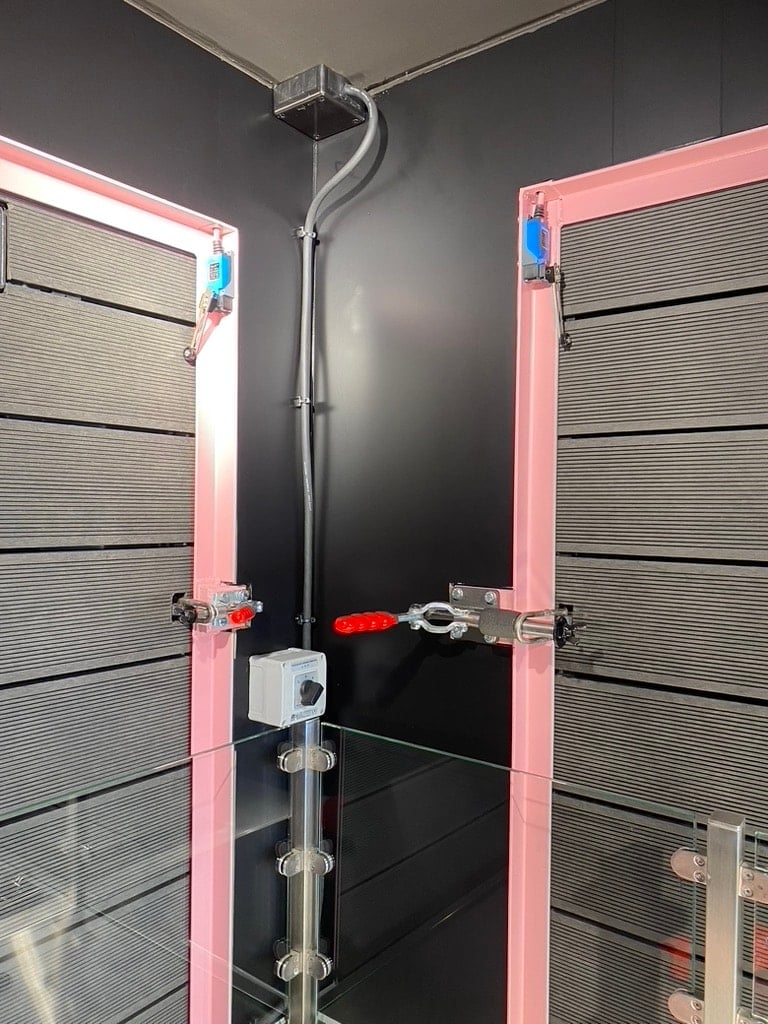

•Platform fall protection/Emergency lock
