Stena Line
Surface Area
15 m²
Number of Modules
2
Stena Line - Modular Commercial Space by HARDBOX
HARDBOX proudly presents the completion of a modular commercial space for Stena Line. Utilizing a robust 20DV/DC container, we created a functional and aesthetic solution ideal for commercial applications.
Durability and Speed of Execution
The construction, based on a shipping container, guarantees exceptional durability and resistance to atmospheric conditions. Thanks to its modular design, the project execution time was minimized, while maintaining the highest quality of workmanship, characteristic of HARDBOX.
Aesthetics and Functionality

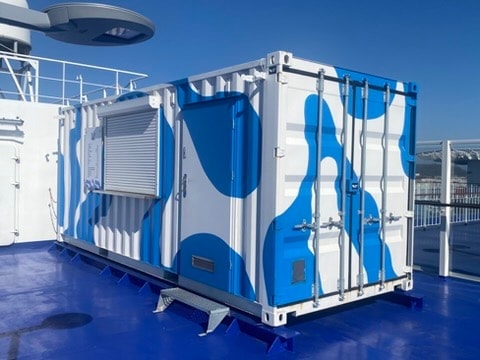

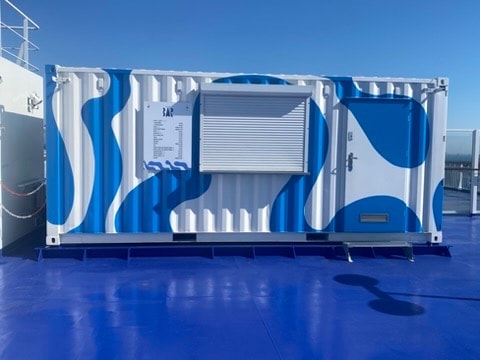

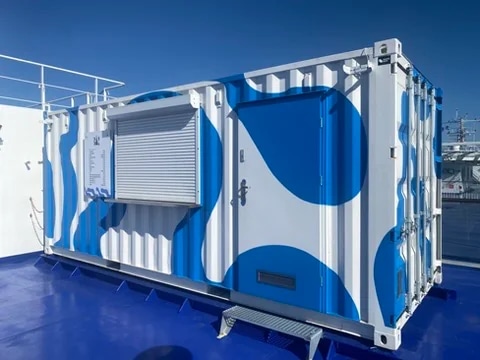

The project for Stena Line combines modern design with practical solutions. The external roller shutters provide security and user comfort. The unique exterior design, utilizing RAL colors, gives the module a recognizable and attractive appearance.
Technical Specifications

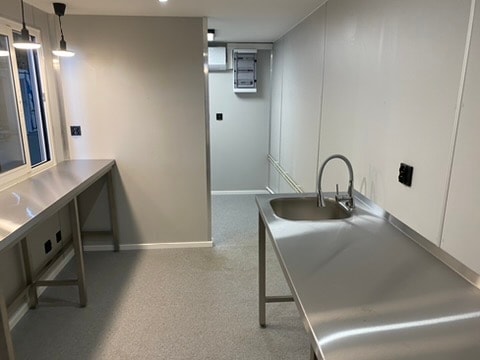

New 20 DC "Dry Cargo" container - Technical door (900x2100mm), - 1640x1400mm HS system sliding display window. Aluminum joinery, 4/16/4 glazing unit. Single-sided safety glazing - 50mm protective roller shutter. Cardan shaft deployment system • Walls - PUR foam thermal insulation ~ 40 mm - U112 PE SWISS KRONO laminated board • Ceiling - PUR foam thermal insulation 50 mm - Plasterboard (GK board), latex paint - Internal lighting installation • Floor - 2mm homogeneous commercial-grade flooring • Electrical System (flush-mounted connection) - External connection, three-phase 32A 400V (Power) - 1x12 surface-mounted modular distribution board - Connection to 10 x 220V points, IP65 hermetic sockets with earthing and current path shutters - Connection to 2 x 16A/32A 5P 400V fixed sockets (Power) - 3x internal lighting circuits - External lighting • Plumbing - Alupex plumbing system - 3.2 kW instantaneous water heater • Ventilation - Mechanical 300m³/h • Exterior Finish - RAL 9003 lacquering - Container frame painted RAL 5005 - Hier Tundra Plus 5 kW air conditioning
Project Gallery
Final Project
Other Images
